Description
Now, you can use the new multi-directional scribing tool set to freely scribe panel lines on surfaces with ease . Refined through trial and error, the GRIDA set is composed with GUNPRIMER’s highest tier of craftsmanship, design and materials.
“GRIDA” means “draw” in Korean.
The GRIDA set is for users who find small, sharp chisels difficult to handle.

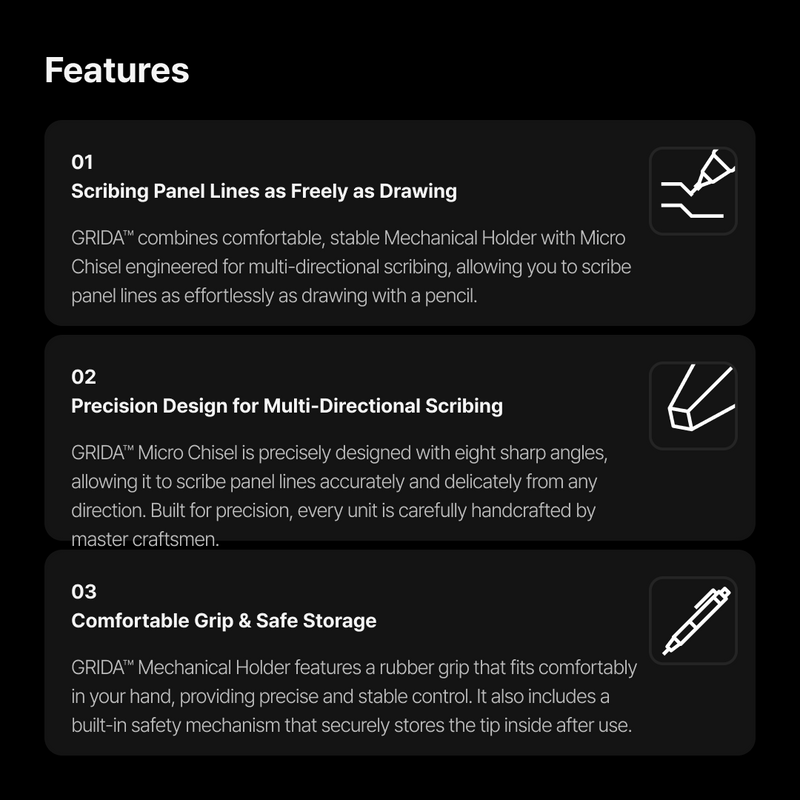

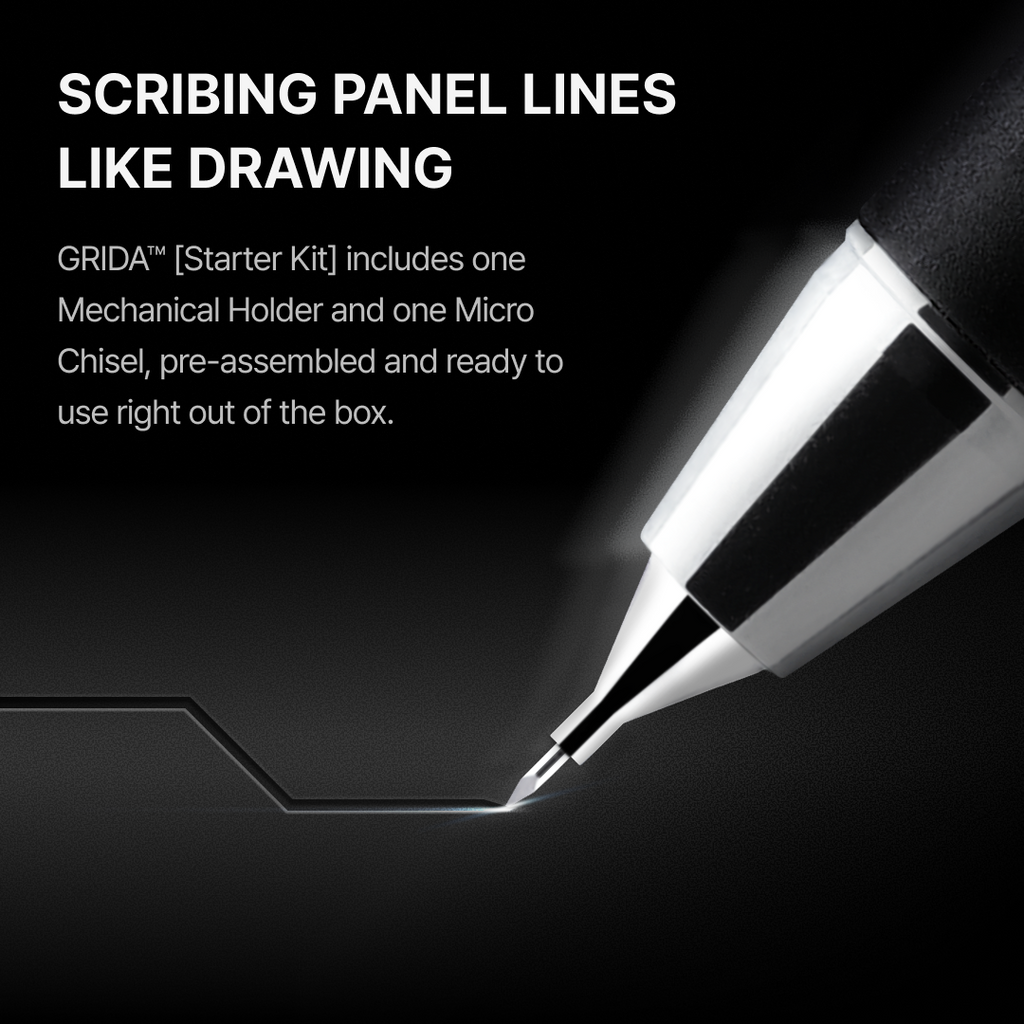

Scribing panel lines as freely as drawing

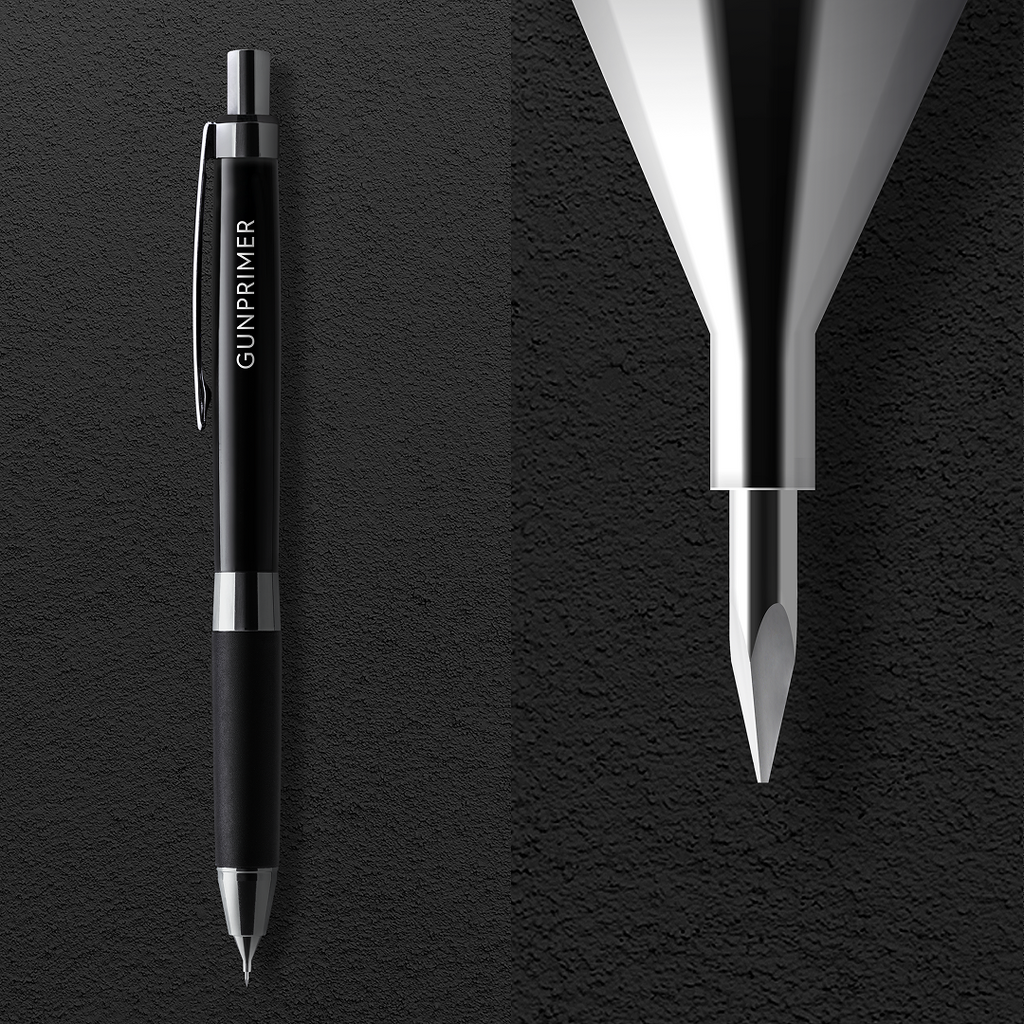

GRIDA combines comfortable, stable Mechanical Holder with Micro Chisel engineered for multi-directional scribing, allowing you to scribe panel lines as effortlessly as drawing with a pencil.

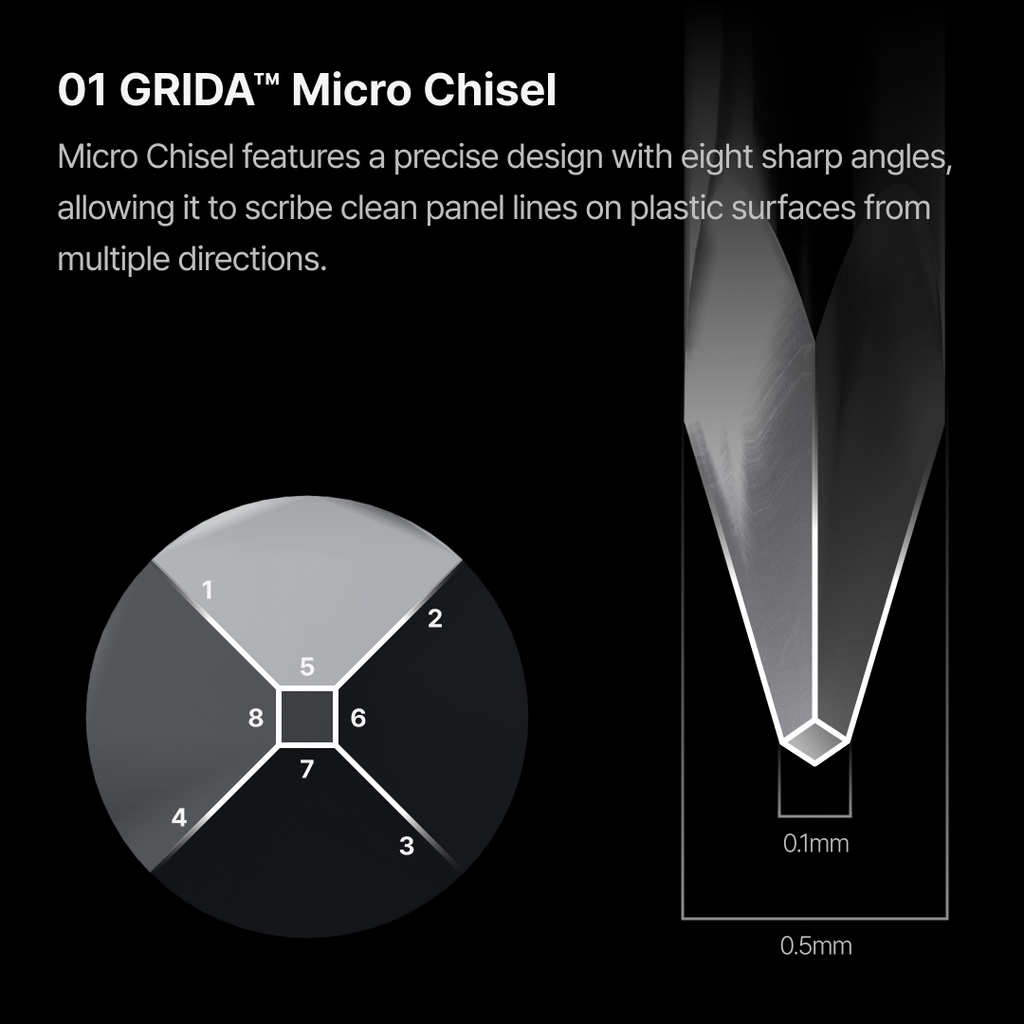

Precision design for multi-directional scribing
GRIDA Micro Chisel is precisely designed with eight sharp angles, allowing it to scribe panel lines accurately and delicately from any direction. Built for precision, each piece is carefully handcrafted by master craftsmen.
Comfortable grip & safe storage
GRIDA Mechanical Holder features a rubber grip that fits comfortably in your hand, providing precise and stable control. It also includes a built-in safety mechanism that securely stores the tip inside after use.
SET INCLUDES
-
MICRO CHISEL
-
MECHANICAL HOLDER
SKU: G05-S-3
Made in Korea
MICRO CHISEL
- MICRO CHISEL is a product developed exclusively for panel line scribing. Install and use it with the enclosed MECHANICAL HOLDER.
- MICRO CHISEL's multi-directional technology enables scribing as if drawing on a paper.

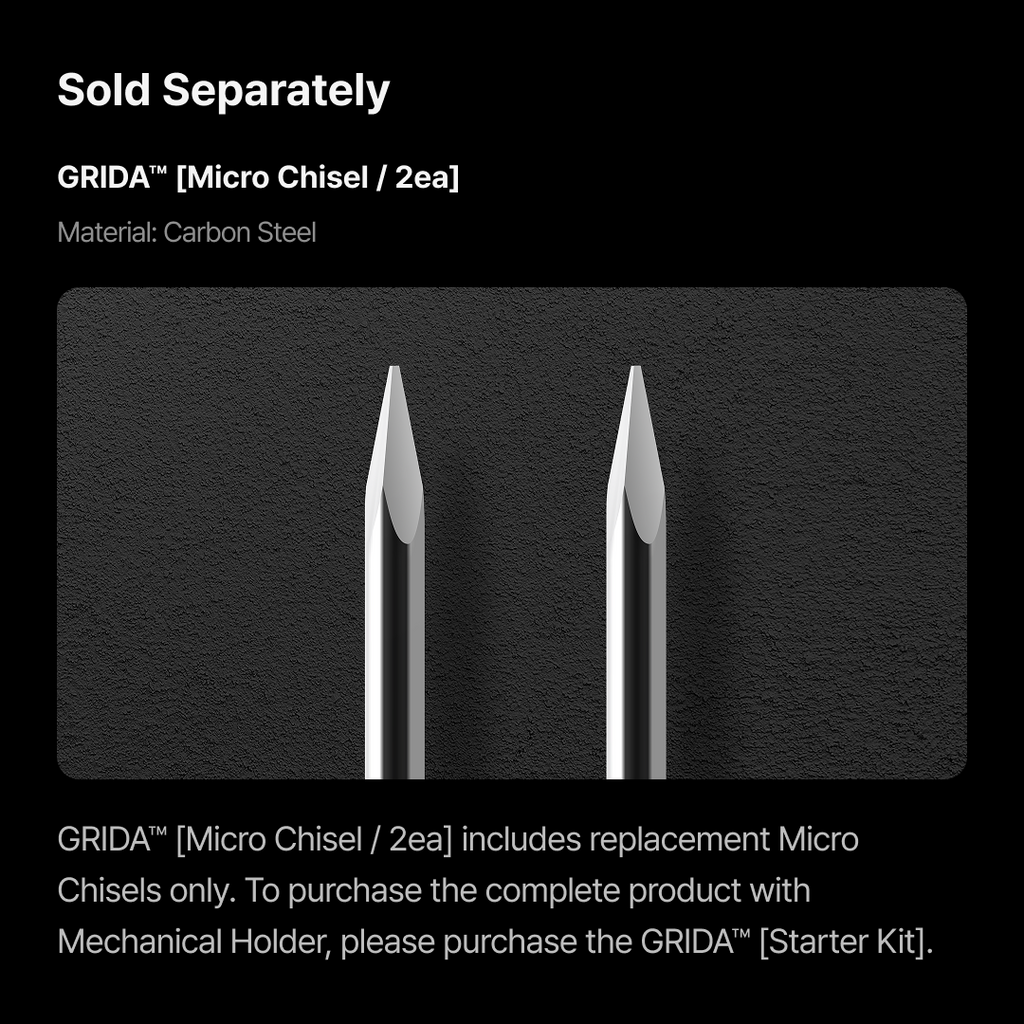

- Purchase GRIDA [Micro Chisel / 2ea] for replacement of worn-out chisels.

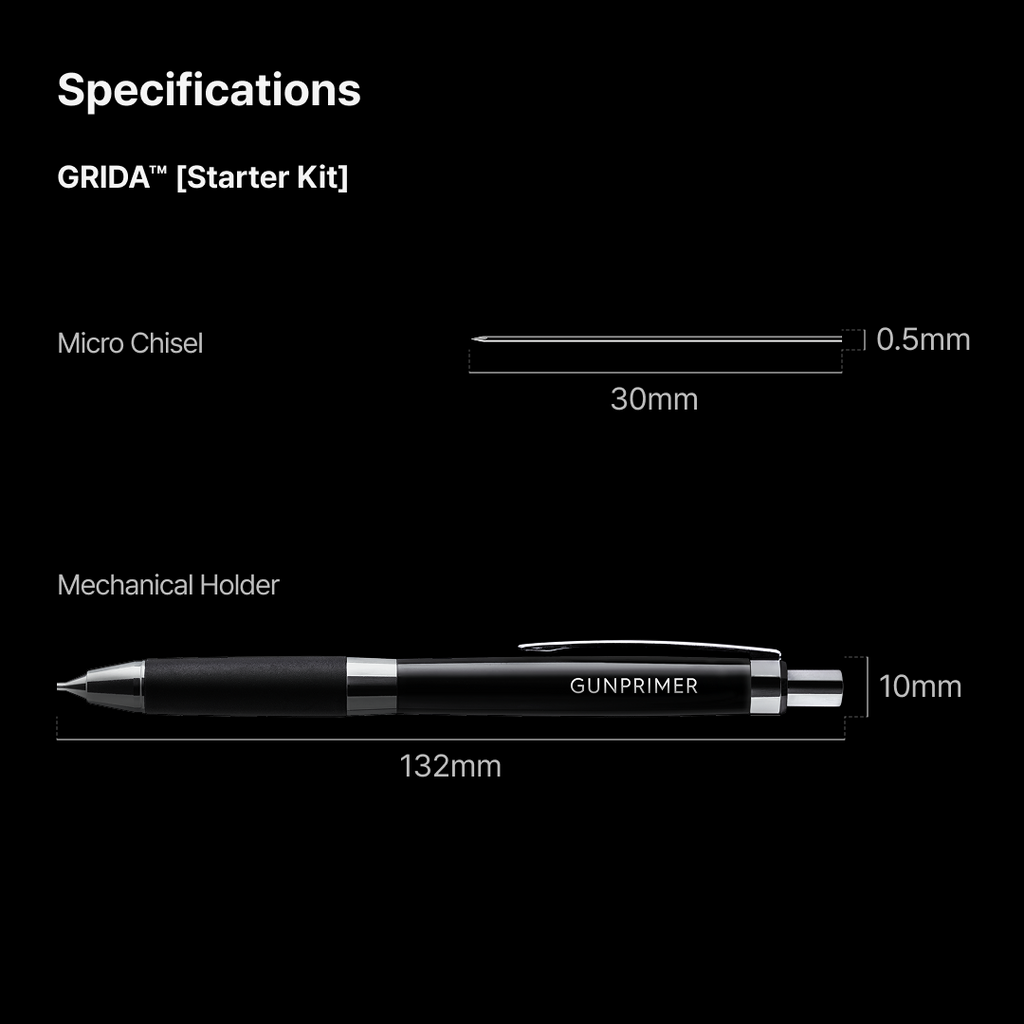

Material: Carbon steel
Size : 0.5x30mm
Made in Korea
Multi-Directional Technology
Multi-directional technology enables stable scribing on curved lines and irregular shaped surfaces.

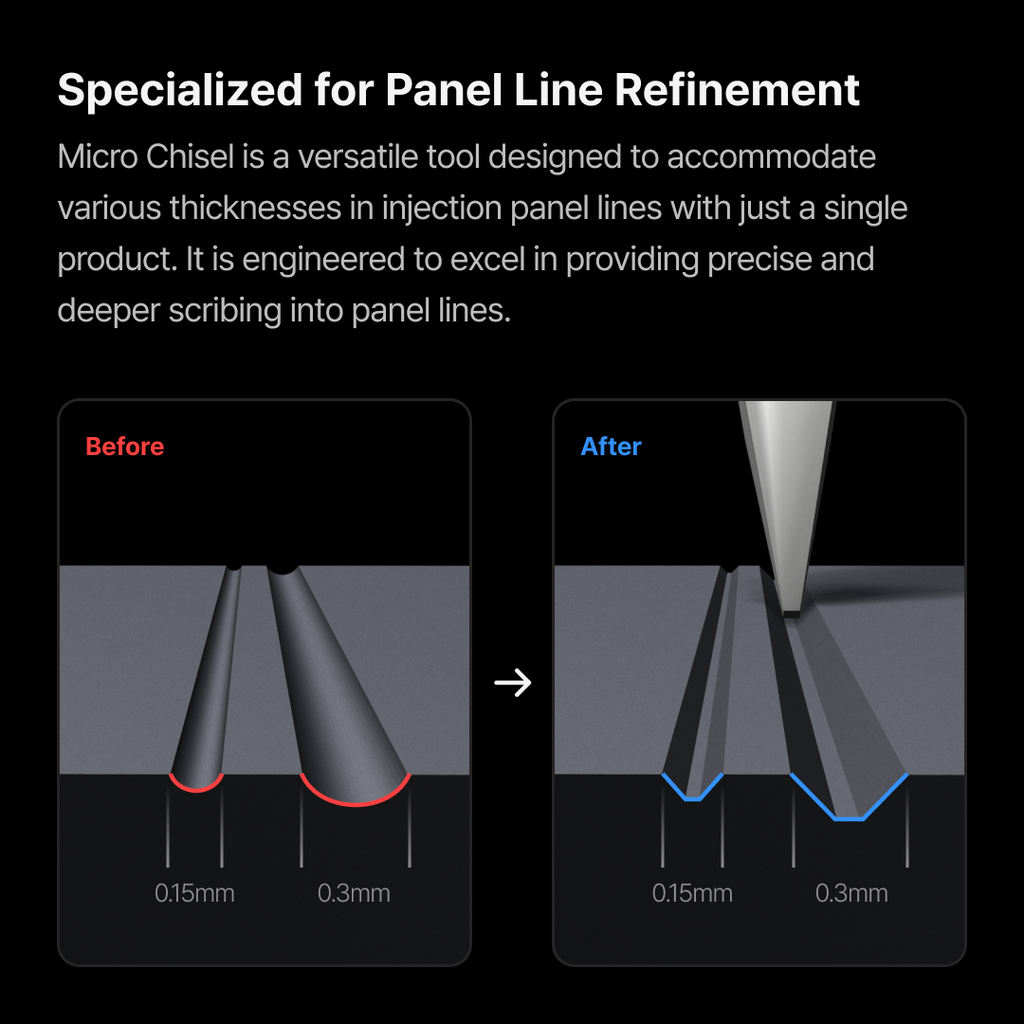

Specialized for Re-Scribing
MICRO CHISEL is a specialized tool for deeper and cleaner re-scribing of panel lines with various thicknesses.
Panel Line Thickness
MICRO CHISEL is capable of scribing an average of 0.15~0.2mm panel line which is the most preferred thickness for panel lines in plastic model kits.
MECHANICAL HOLDER
-
MECHANICAL HOLDER is a dedicated tool to use with the MICRO CHISEL. Balanced weight and handling make possible for more elaborate work.
-
Rubber grip of the MECHANICAL HOLDER prevents from slipping while scribing.
Size : 10x135mm
Made in Japan

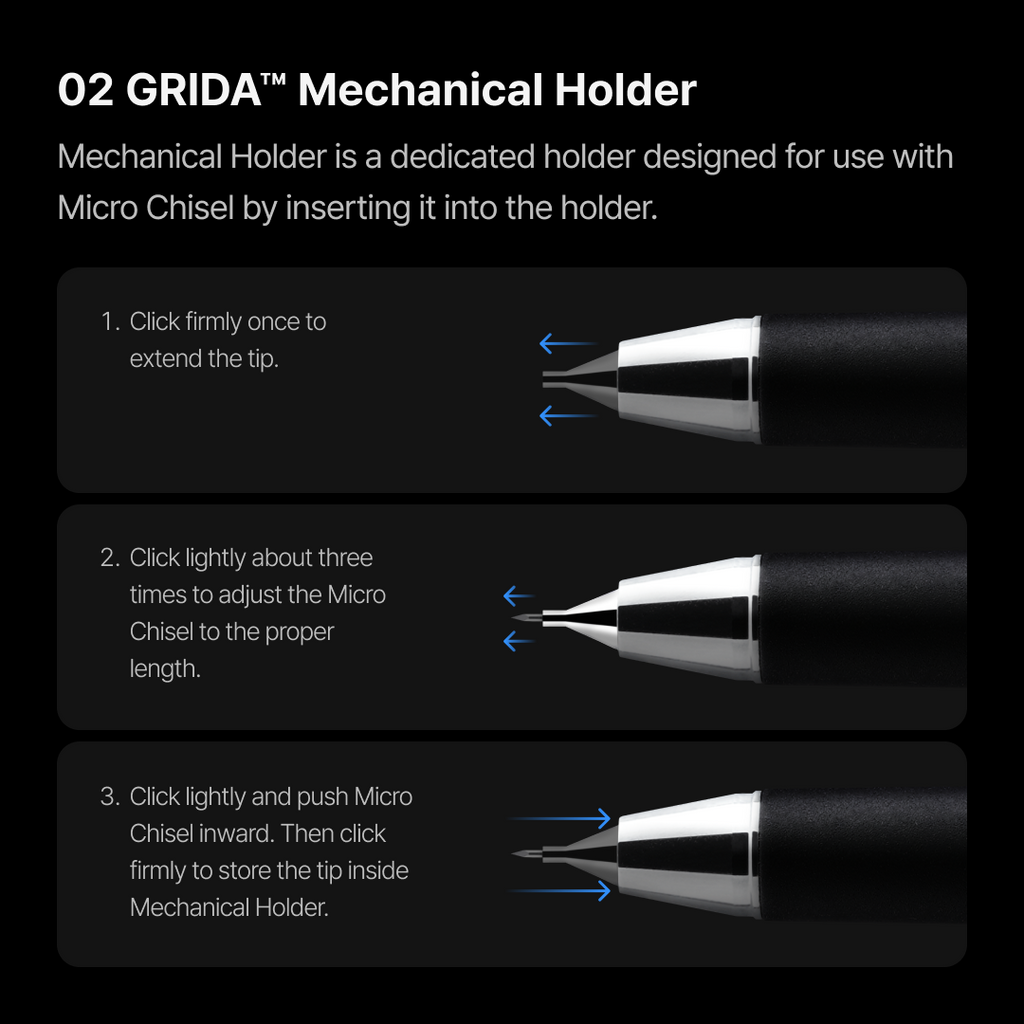

Double-Tap Sleeve Technology
Designed for extra level of safety, Double-Tap Sleeve Technology ensures the safety for both the user and the MICRO CHISEL.
Hard press on the MECHANICAL HOLDER extends the safety sleeve and subsequent light press extends the MICRO CHISEL and another hard press retracts the sleeve back into the HOLDER. It's full retraction mechanism prevents from any damage of MICRO CHISEL when not in use.
Installation Method
Insert the MICRO CHISEL into the MECHANICAL holder thorough the lead sleeve from the bottom. The opposite end of the MICRO CHISEL is in rounded shape for easy insertion into the lead sleeve.
Comfortable Grip
MECHANICAL HOLDER's comfortable grip can provide great precision when scribing as if they are drawing on a paper.
IMPORTANT
-
Do not over extend the chisel from the grip. This may cause damage or break the chisel. It is recommended to click the holder 3 times after inserting the MICRO CHISEL to get the proper length for use.
-
Holding the MECHANICAL HOLDER improperly in low or steep angles will not give good results and may break the chisel. It is recommended to hold MECHANICAL HOLDER, upright, as if you are writing or drawing.
